Cost of Energy Optimised by Reinforcement Learning (CEORL)

Overview

Wave energy converters (WECs) need to attract forces in order to capture power but they also need to avoid forces to survive extreme events. This can be considered the 'force contradiction'. The ‘risk contradiction’ involves the costs of risk and uncertainty. These include the increased cost of capital, and costs due to reduced reliability, availability and survivability. Lowering these risks usually involves increased capital costs.

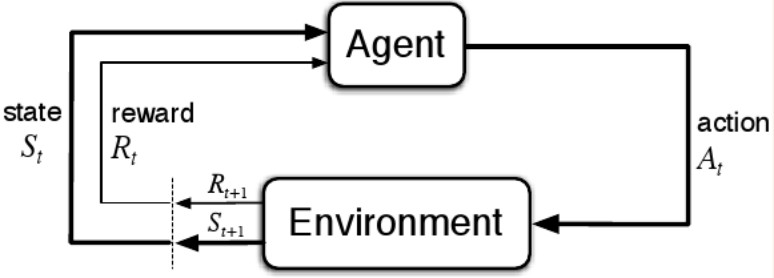

Reinforcement Learning (RL) is a leading machine learning method with the potential to bypass these contradictions. It can learn the probabilistic relationship between chosen actions and the device behaviour or 'state', and desirable states can be assigned 'rewards'. Undesirable states can be penalised with negative rewards. RL calculates the best long-term control strategy by summing the probabilities of future rewards. RL is robust to sensor errors, delay and drift, as well as unidentified non-linear response. It builds a 'map' of the relationship between the chosen actions and the device response or 'state'. Furthermore, this map is built for each device, so it accounts for manufacturing, installation and operational differences. RL would also enable subsystems that have been developed independently to be integrated into a single WEC. RL can address the force contradiction by deciding when to limit forces and when to maximise capture. It can address the risk contradiction by including the inherent uncertainties in the mapping and decision-making process.

The initial basis of the project in its early Stages was to use the WEC developer Aquaharmonics, who won the US Wave Energy Prize in 2016, as a base case. Part of their winning formula was to have a simple WEC and use control to maximise performance while limiting extreme loads, and RL may be a promising technique to extend that approach to more realistic conditions.

As the project progressed into Stage 2, the CEORL project identified it had the potential to overcome the following challenges for WEC control:

• Absence of adequate models: model-predictive control is only as good as the model, and it needs bespoke development for each device type.  Model-free RL does not require a model.
• Need for wave-by-wave control: Sophisticated wave-by-wave control could improve the economic viability of WECs by balancing competing requirements of high and low loads.  Large capture widths require large forces, however, large forces increase operational costs due to both peak and fatigue loads.  Finding the correct balance between these competing requirements is likely to lead to the lowest LCOE.  RL will be rewarded for learning control policies that trade-off these competing requirements to find policies that give the lowest LCOE.

In Stage 3, the aims of the project evolved to attempt to show that RL-derived policies can either double the energy or halve the loads in comparison to the baseline control by testing an RL-derived control policy in a physical model in a wave tank with power taken off by an electrical generator. Testing would be able to provide evidence of policy transferability - that a policy learnt on a numerical model can be transferred to a physical system, that training in one set of conditions leads to a policy that will be effective in different conditions. However, the main project ambitions are to de-risk the R&D process by gaining a better understanding of opportunities and limitations, and to build confidence and interest in our results within the wave energy community.

The limitations of the RL approach were also investigated, including limits to policy transferability, difficulties with particular types of sensor, or practical implementation problems, in order to support planning of any future R&D effort for a WEC developer. The project also developed intellectual property on the process of deriving a policy for a particular WEC, which involves assessing whether HIL is a useful step in the process.
